SLP74LVC07A
HEX BUFFER WITH OPEN-DRAIN OUTPUTS

    The SLP74LVC07A provides six non-inverting buffers.

    The outputs are open-drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions.

    Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V system environment.


Main feature

  • Inputs accept voltages up to 5.5V

  • Operate from 1.2V to 3.6V

  • Direct interface with TTL levels

  • CMOS low power consumption

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC07AEB SOP-14-225-1.27 74LVC07A Halogen free Tube
SLP74LVC07AEBTR SOP-14-225-1.27 74LVC07A Halogen free Tape & Reel
SLP74LVC07AJY TSSOP-14-225-0.65 LVC07A Halogen free Tube
SLP74LVC07AJYTR TSSOP-14-225-0.65 LVC07A Halogen free Tape & Reel

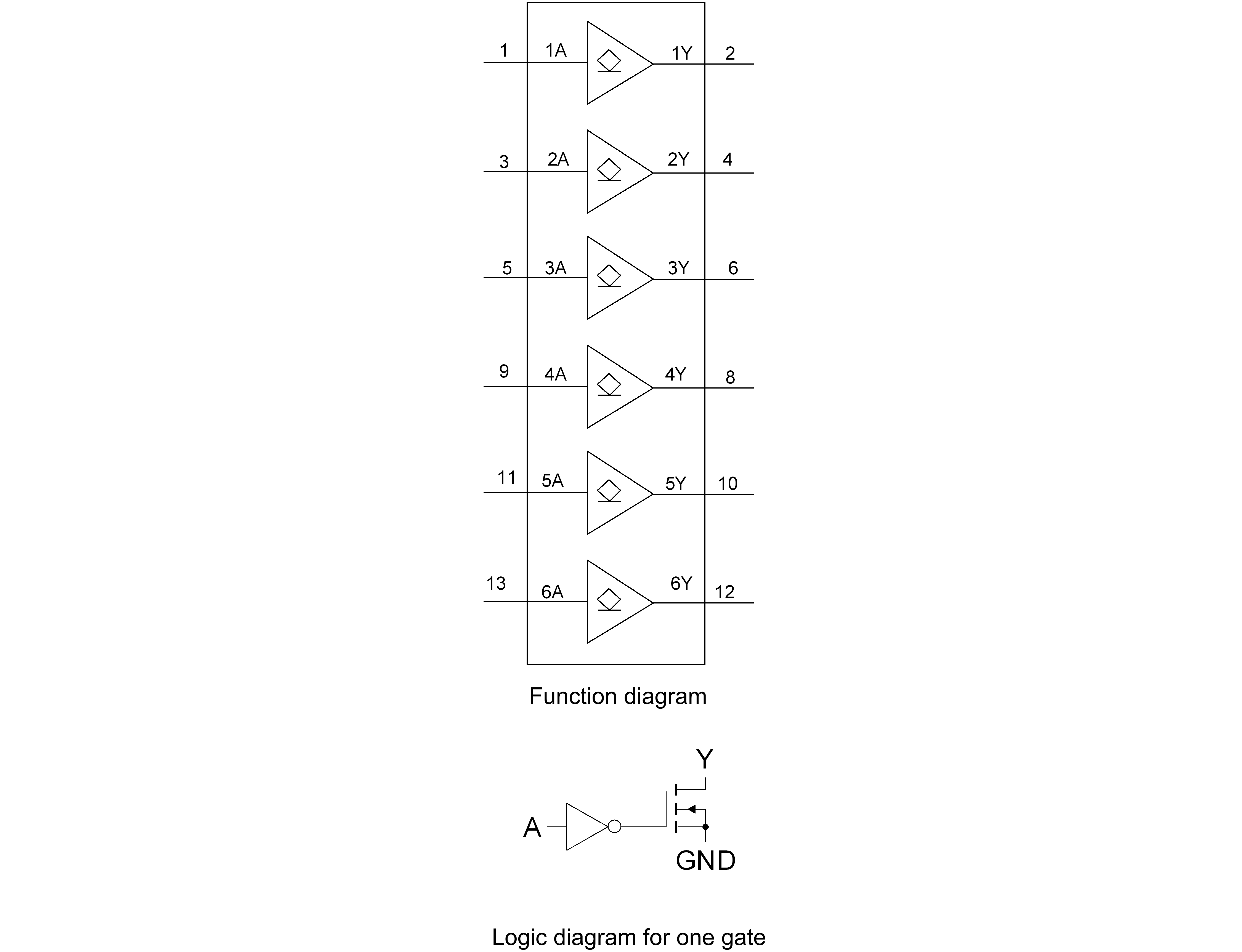

Block Diagram

新建 Microsoft Office Visio 繪圖.png


Documents
title Types of Size (KB) date Download the latest English version
SLP74LVC07A 0 1970-01-01 SLP74LVC07A Brief Datasheet
